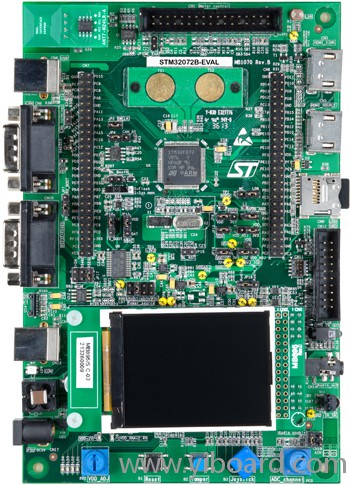

STM32072B-EVAL

STM32F072VB 微控制器

官网链接：http://www.st.com/web/catalog/tools/FM116/SC959/SS1532/LN1199/PF259717

STM32072B-EVAL评估板是针对STM32F0系列的演示和开发平台。板上搭载以ARM Cortex-M0为内核的32位微控制器：STM32F072VBT6。两个 I2C, 两个SPI, 四个USART, 一个CAN, 12位 ADC, 12位 DAC, 两个比较器, 内置 16KB SRAM and 128KB 闪存, USB FS, 触摸条, CEC, 支持SWD调试。板子集成了在线调试烧录工具ST-LINK/V2。

The STM32072B-EVAL evaluation board is designed as complete demonstration and development platform for STMicroelectronics ARM cortex-M0 core-based STM32F072VBT6 microcontroller with two I2C, two SPI, four USART, one CAN, 12-bit ADC, 12-bit DAC, two GP comparators, internal 16KB SRAM and 128KB Flash, USB FS, Touch sensing, CEC, SWD debugging support.The full range of hardware features on the board is designed for the evaluation of all the peripherals and the development of user-specific applications. Extension headers are used to easily connect a daughter board or a wrapping board for user-specific applications.The ST-LINK/V2 is integrated on the board as embedded in-circuit debugger and programmer for the STM32 MCU.

Key Features

Four 5 V power supply options: power jack, ST-LINK/V2 USB connector, user USB connector or daughter board

Stereo audio jack which supports a headset with microphone connected to DAC and ADC of STM32F072VBT6.

2G Byte (or more) SPI interface MicroSD card

I2C compatible serial interface temperature sensor

RF E2PROM

RS232 and RS485 communication

IrDA transceiver

IR LED and IR receiver

SWD debug support, ST-LINK/V2 embedded

240x320 TFT color LCD connected to SPI interface of STM32F072VBT6

Joystick with 4-direction control and selector

Reset and tamper buttons

Four color user LEDs and two LEDs as MCU low power alarm

Extension connector for daughter board or wrapping board

MCU voltage choice fixed 3.3 V or adjustable from 1.65 V to 3.6 V

USB full-speed connector

Touch sensing buttons

RTC with backup battery

CAN2.0A/B compliant connector

Light Dependent Resistor (LDR)

Potentiometer

Two HDMI connectors with DDC and CEC

Smart Card slot

Motor control connector
